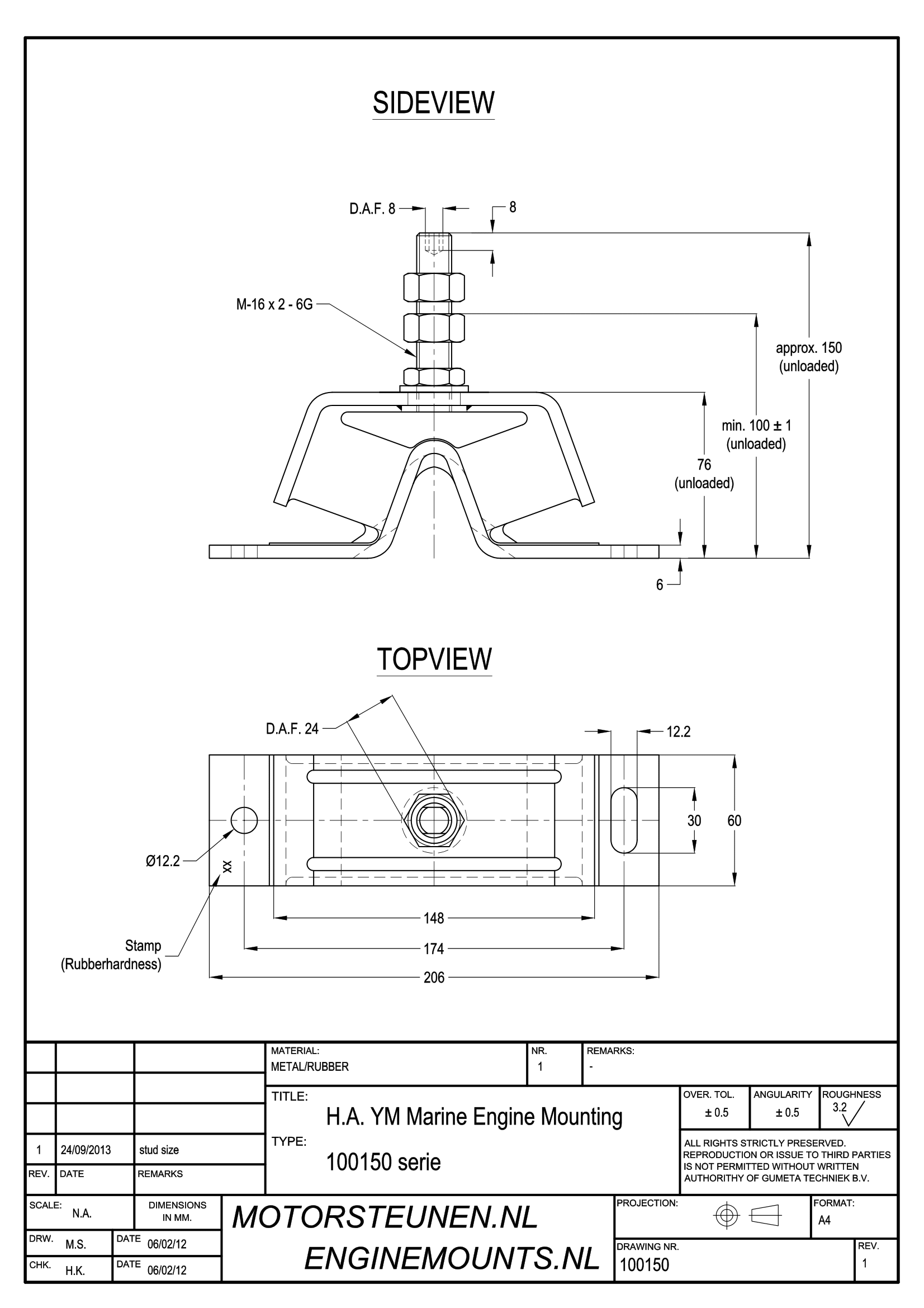

YM-Mount Engine mount type 100 - M16 pin - max. 70 kg - for Yanmar engines

YM Mountings (Yanmar type) offer relatively high vibration isolation, especially when used in 1, 2 and 3 cylinder diesel engines. This type of motor support is equipped with an M16 adjustment pin for the height adjustment of the motor. YM Mountings are also available in a so-called 'High-Dampening' rubber mix (on request).

Article number: 100150-50

Rubber hardness: 50 shore

Maximum allowable load: 70 kg

OEM number: 128377-08350 / 528374-08350 / 124772-08341
