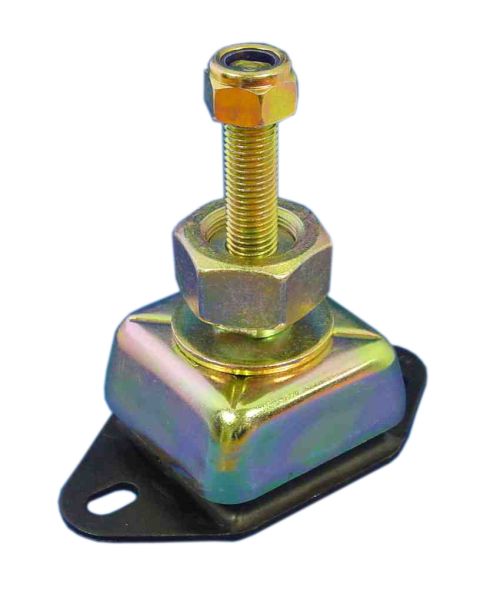

Marine Mount Motor support type IM-600 - 45 shore - M20 fine adjustment - max. 175 kg

Marine Mounts are ideal for maritime applications. These compact vibration dampers are easy to install and offer high vibration isolation. The internal buffer ensures that the movement of the motor is limited in three directions. Marine Mounts are available in five sizes and in various rubber hardnesses. This type of engine mount is equipped with an M20 fine adjustment for accurate height adjustment of the engine. The IM-600 is a very robust engine mount and is characterized by a high absorption capacity for thrust pressure.

Article number: 100032-45

Rubber hardness: 45 shore

Maximum allowable load: 175 kg
