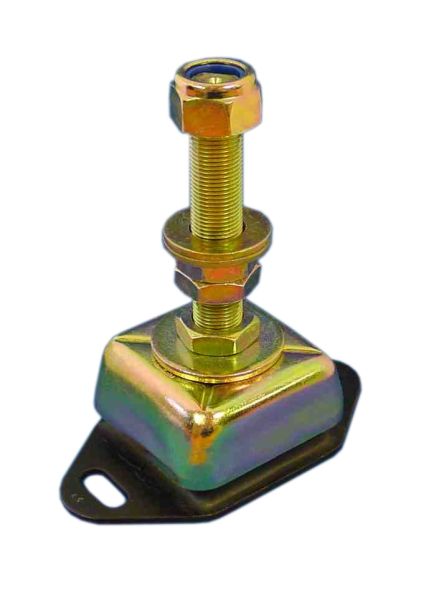

Marine Mount Motor support type IM-600 - 45 shore - M24 pin - max. 175 kg

SKU: 100033-45
Regular price €111,50 inc. VAT

Marine Mounts are ideal for maritime applications. These compact vibration dampers are easy to install and offer high vibration isolation. The internal buffer ensures that the movement of the motor is limited in three directions. Marine Mounts are available in five sizes and in various rubber hardnesses. This type of motor support is equipped with an M24 adjustment pin for the height adjustment of the motor. The IM-600 is a very robust engine mount and is characterized by a high absorption capacity for thrust pressure.

Article number: 100033-45

Rubber hardness: 45 shore

Maximum allowable load: 175 kg
